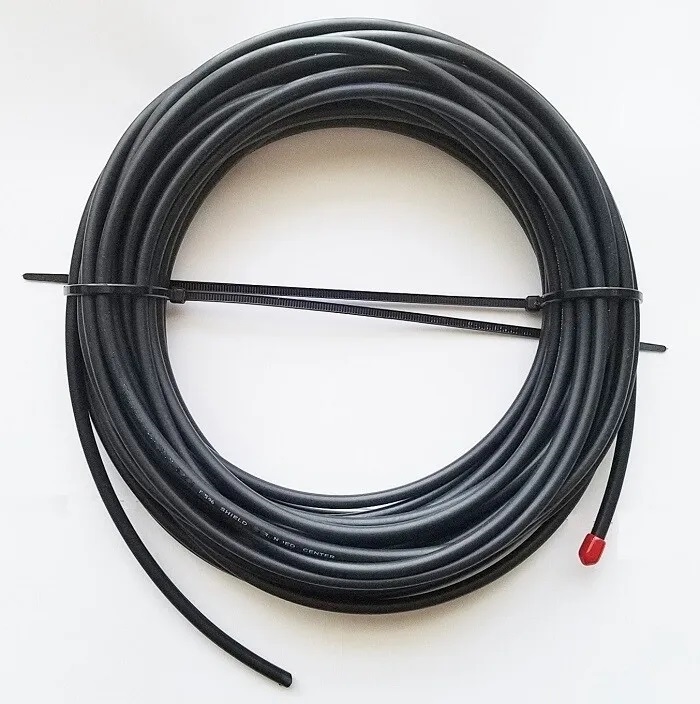

RG58 Type Low Loss Coaxial Cable By Foot
RG58A/U Coax Cable Low Loss By Foot up to 500 Feet Wood Reel

Alternative Views:
Our Price: $0.55

Stock Status:Out of Stock

Availability:: Usually Ships in 1 to 2 Days
Product Code: RG58-FOOT


Model*:

Cable Length*:

QTY:
Description Technical Specs

RG58 type low loss precision 50 Ohms coax cable by foot.

Model Available:
58PT-B - tinned copper braid shield, stranded tinned copper center, solid velocity 66%
59UP-B - bare copper braid shield, solid bare copper center, velocity 66%
58-B - tinned copper braid shield, stranded bare copper center, velocity 78%
BR-58-DS - tinned copper braid + foil shield, stranded tinned copper center, velocity 66%
Features
  • RG-58A/U low loss coaxial cable.
  • 58PT-B - tinned copper braid shield 95%, stranded tinned copper center, solid velocity 66%
  • 59UP-B - bare copper braid shield 95%, solid bare copper center, velocity 66%
  • 58-B - tinned copper braid shield 95%, stranded bare copper center, velocity 78%
  • BR-58-DS - tinned copper braid 95% + foil, stranded tinned copper center, velocity 66%
  • Impedance 50 Ohms
  • Capacitance 25.9 pF/ft.
  • Jacket 0.195" (4.95 mm)
